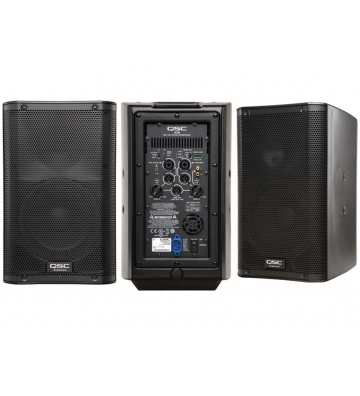

K8 CASSA ATTIVA 2 VIE 8"/1" 1000W 8” Woofer; 1.75” diaphragm compression driver 105° conical DMT coverage Maximum SPL 127 dB peak Attractive and professional appearance Rugged ABS enclosures 16-gauge powder coated steel grille 1000-watt continuous Class D power modules in all models Comfortable ergonomic handles 35 mm pole sockets with Tilt-Direct™ M10 rigging points Eyebolt and yoke mount accessories available Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output Extensive DSP enhances system performance: DMT™ (Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones. Intrinsic Correction™, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field. DEEP™ and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies. GuardRail™ protection protects both the amplifier module and your performance from unnatural and destructive clipping. Buy it Now From an Authorized Online Retailer Rent it Today Try Before You Buy Hear it Today At a Location Near You SPECIFICATIONS K8 Configuration Trapezoidal 2-way Transducers Low-frequency High-frequency 8" cone transducer 1.75" diaphragm compression driver Frequency Response (-6 dB) 66 Hz - 18 kHz Frequency Range (-10 dB) 61 Hz - 20 kHz Nominal Coverage (-6 dB) 105° conical DMT Maximum SPL1 127 dB peak Amplifiers Power Output2 1000 W continuous Class D (500 W LF, 500 W HF) 2000 W peak Input Impedance XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced XLR / ¼" MIC mode: 2260Ω balanced RCA: 10 kΩ Controls Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit) Indicators Power, Signal A, Signal B, Standby, Limit, Mic Connectors Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector Cooling On demand, 50 mm variable speed fan Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ Transducer Protection Thermal limiting, excursion limiting AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz AC Power Consumption (1/8 of full power) 100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A Enclosure Material Impact resistant ABS Finish Black paint Grille Rugged powder-coated steel Dimensions (HWD) inches 17.7 × 11 × 10.6 Dimensions (HWD) mm 450 x 280 x 269 Weight (Net) 27 lb / 12.2 kg
